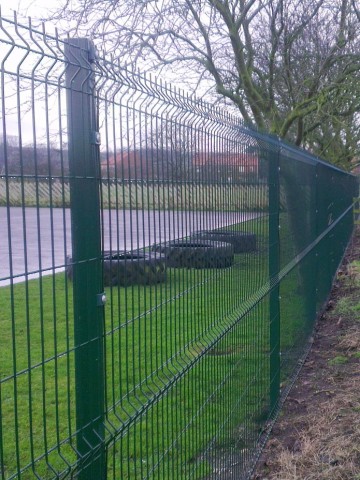

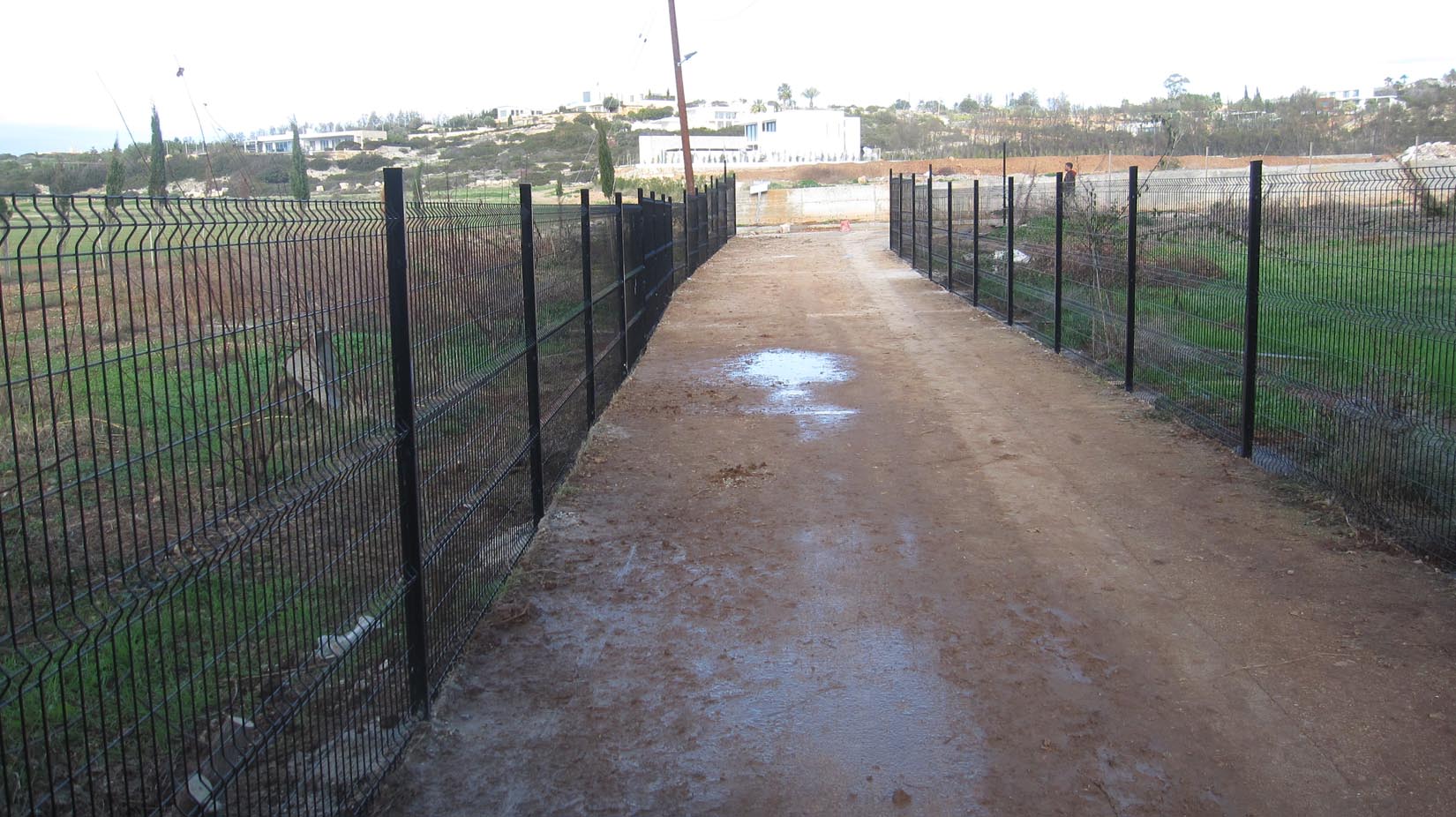

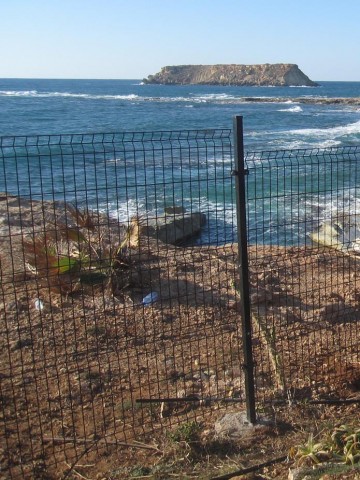

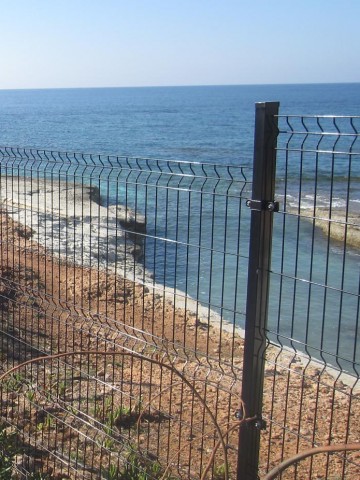

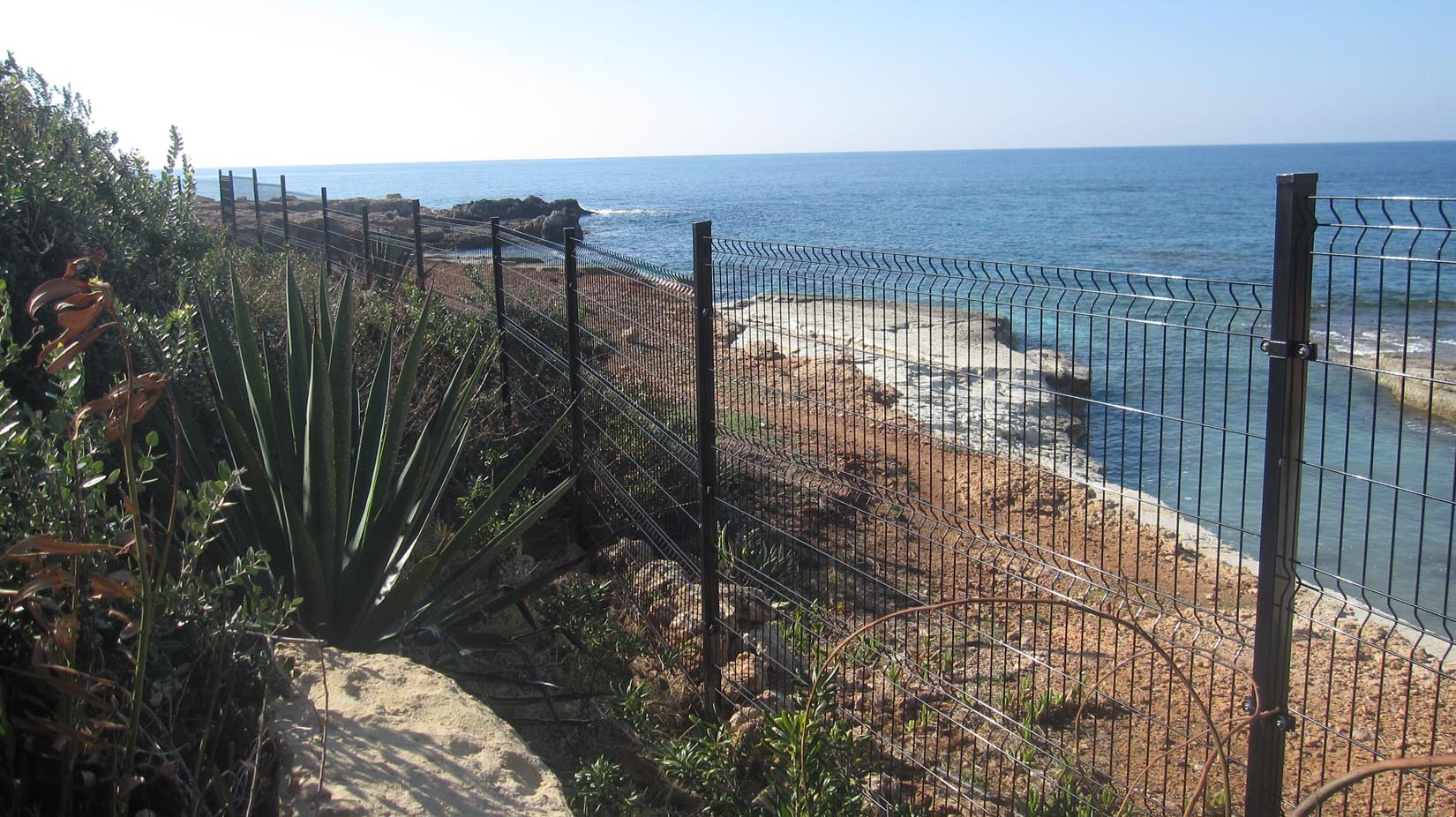

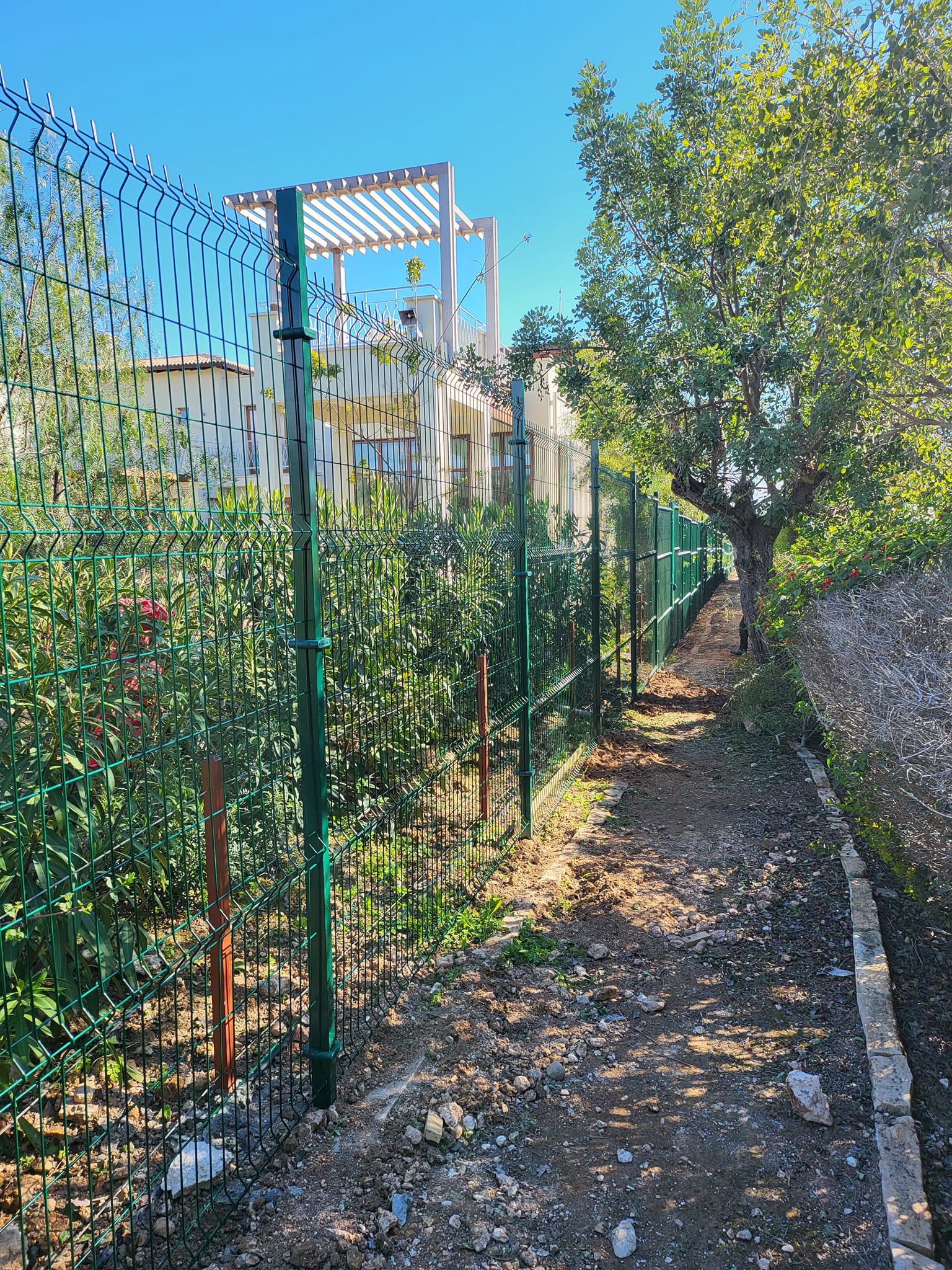

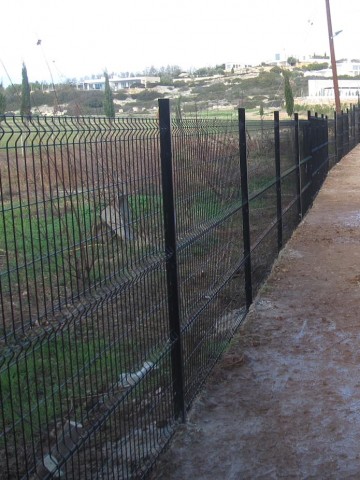

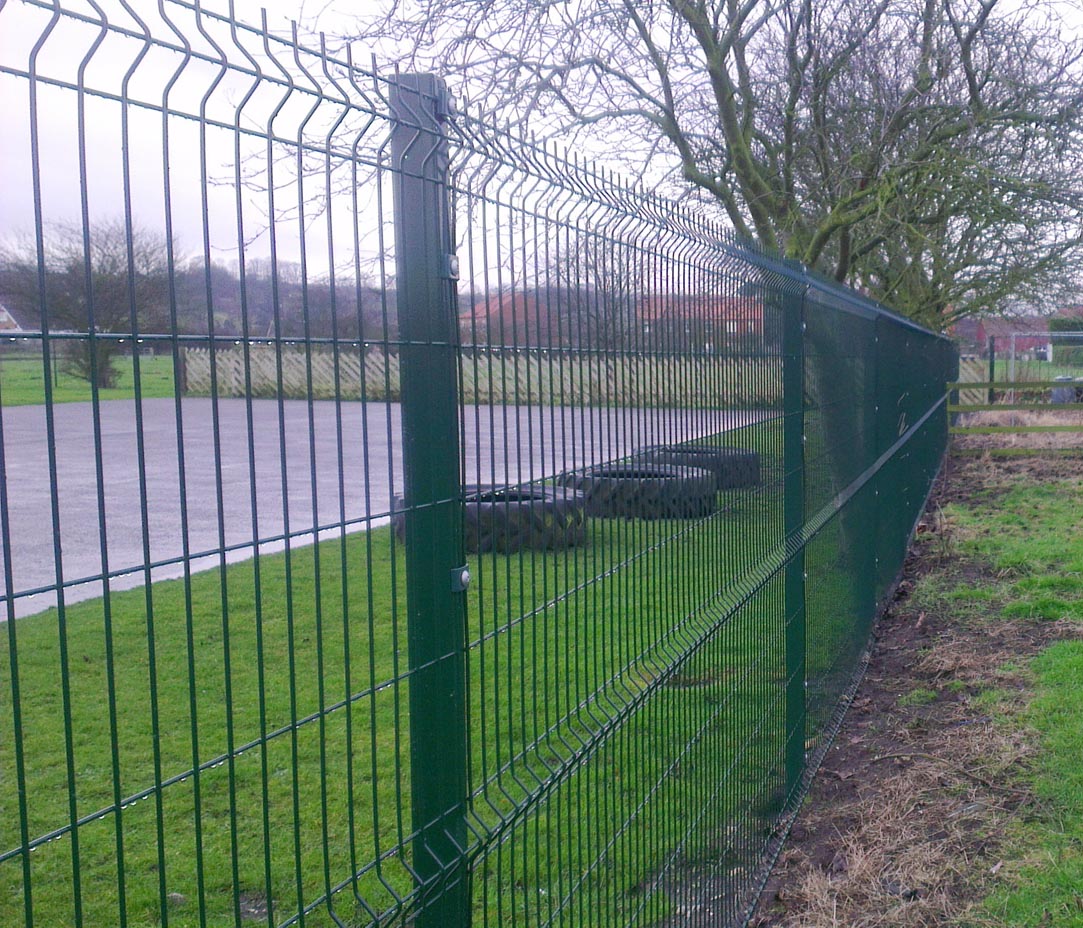

The panels are resistor welded from steel hot-dip galvanized rods, which are 5 mm or 4 mm thick and then protected by a plastic covering – an electrostatic powder coating and heated at 200 ºC. This process enables our panel fences to become completely protected against rust and they require no maintenance or painting as we provide rust-free guarantee for a period of 10 years, if no physical damage is caused to the fence (scratches, impacts).
Panels can have various heights:
- 600 mm, 1000 mm, 1200 mm, 1500 mm, 1700 mm, 2000 mm, 2400 mm

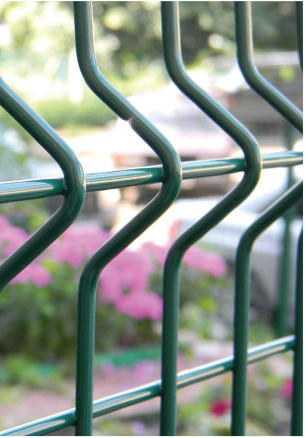

According to their height, they are reinforced in their entire length with stamped V-shaped reinforcements adding strength and stability to the panel.
- 600 mm, 1000 mm and 1200 mm have 2 reinforcements;
- 1500 mm and 1700 mm have 3 reinforcements;
- 2000 mm and 2400 mm have 4 reinforcements.
The panel length is standardized – 2.5 m.
Plastic covering offers a wide selection of possibilities within the RAL colour scale. Standard colours are green RAL 6005, which our clients prefer as it merges best with the surroundings of houses, gardens and parks. Standard selection are also shades of grey RAL 7015, 7035, 7040, which match modern business buildings and asphalt parking lots.
Panels are made from solid steel hot-dip galvanized rods (diameter 5 mm), where the application of zinc is min. 80g/m2. The fence panels are covered with plastic electrostatic powder coating and baked at 200 ºC. Glazing: according to standard (ISO 2813) at an angle 60,95%Adhesion: according to standard (ISO 2409) Durability: according to standard (EN 48252) more than 80. Thickness of the layer of applied rust resistant polyester is min. 120 micron.
